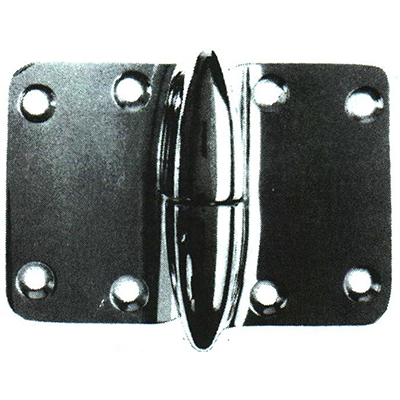

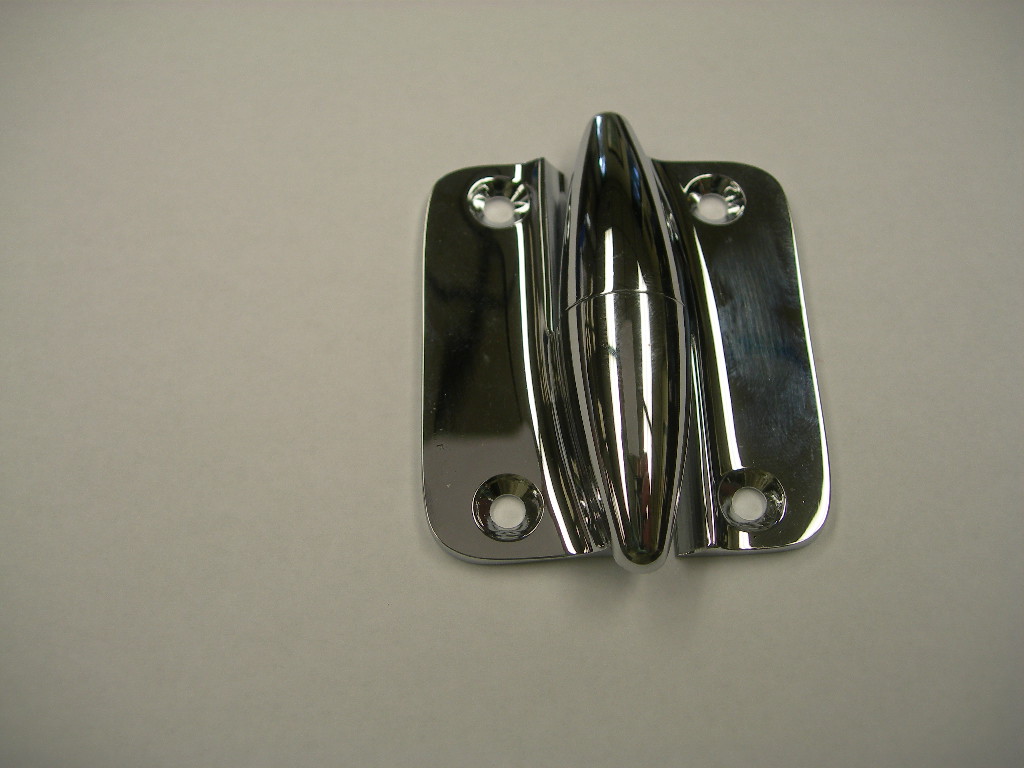

19/32 Inch Stainless Steel Right Hand Lift-Off Hinge

19/32 Inch Stainless Steel Right Hand Lift-Off Hinge

Item# 9-01442 Categories: ,


Brand: Weston Body Hardware

Countersunk 19/32 (15 MM) Inch
Type Right Hand
Material Mild steel
Description RH Hinge, Stainless Steel
Dimension A (Height) 4 (100 MM) Inch
Dimension B (Width) 3 (75 MM) Inch
Dimension C (Centers) 1 3/4 (45 MM) Inch
Dimension D (Depth) 2 3/8 (60 MM) Inch
Dimension E (Hole Centers) 19/32 (15 MM) Inch
Dimension F (Hole Centers)
Dimension G (Width)
Dimension I (Pin Diameter)
Dimension J (Section Thickness)
Finish Stainless Steel
Hole Diameter 13/32 (10 MM) Inch
Material Thickness .112 (3 MM) Inch
Stainless Pin Diameter 13/32 (10 MM) Inch
Angle of Opening (Forward) 180
Angle of Opening (Backward) 90
Concealed Fixing Studs Welded on, M8 x 15mm
Shipping Weight 0.70
Shipping Length 4.00
Shipping Height 0.60
Shipping Width 3.00
Freight Class 50
Package Type Each
Units Per Package 1
