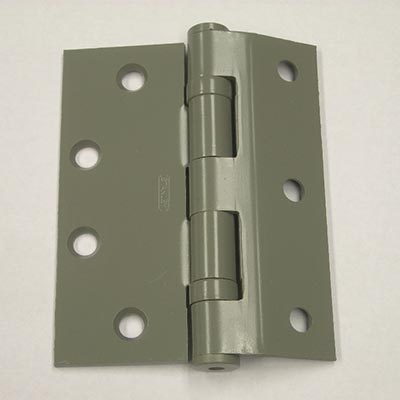

4 1/2 Inch Primed Steel Standard Weight Half Mortise

Item# FBB-167-PL-4-1/2 Category:

Brand: Dormakaba


  • For medium weight or average frequency doors hung on channel iron frames.
  • Equipped with two permanently lubricated non-detachable ball bearings and reversible pins and tips.
  • Pins in nonferrous hinges are stainless steel.
  • Steel hinges are polished and plated to insure a fine durable finish.
  • A back plate is recommended for use with these hinges.
  • Equipped with reversible pins and tips.
  • Packed with machine screws and grommet nuts for 13/4″ 44mm doors.
  • ANSI A8212 Steel – polished and plated or phosphated and primed for painting

Standard ANSI A8212
Size Length of Joint (Inch) 4 1/2 Inch
Size Length of Joint (mm) 114 mm
Frame Leaf Width (A) (Inch) 1 1/2 Inch
Frame Leaf Width (A) (mm) 38 mm
Door Leaf Width (B) (Inch) 2 1/16 Inch
Door Leaf Width (B) (mm) 52 mm
Offset (C) (Inch) 7/16 Inch
Offset (C) (mm) 11.1 mm
Gauge of Metal (Inch) 0.134 Inch
Gauge of Metal (mm) 3.4 mm
Base Metal Steel
Finish Primed
Shipping Weight 0.90
Shipping Length 4.50
Shipping Height 1.50
Shipping Width 2.00
Freight Class 50
Package Type Barrel
Units Per Package 1
