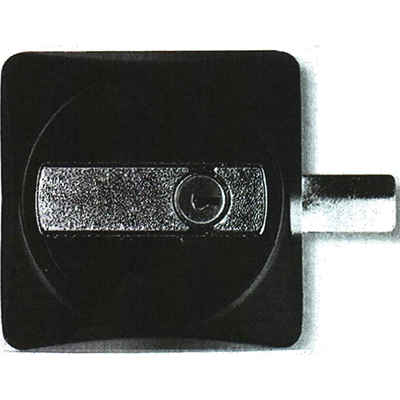

Semi Flush Recess Latch cat image

98 mm Semi-Flush Recess Latch with Full Water-Sealing

Item# 9-01840 Categories: Semi-Flush Recess Latch with Full Water-Sealing, Semi-Flush Recess Latch with Full Water-Sealing

Brand: Weston Body Hardware

Specifications
Shipping Information
Ordering Information

Dimension A (Case Length)	98 mm
Dimension B (Case Width)	20 mm
Dimension C (Fixing Centres)	22.5 mm
Dimension D (Fixing Centres)	82 mm
Dimension E (Bolt Width)	72 mm
Dimension F (Bolt Penetration)	82 mm
Dimension G (Max. Bolt Projection)	20 mm
Dimension H (Hole Sizes)	M5 x 10 mm
Dimension A (Case Length /breadth)	98 mm
Dimension B (Height)	20 mm
Dimension C (Max. Depth)	22.5 mm
Dimension D (Recess Diameter)	82 mm
Dimension E (Hole Centres)	72 mm
Dimension F (Engagement)	82 mm
Dimension G (Latch Bar Width)	20 mm
Dimension H (Hole Diameter)	M5 x 10 mm

Shipping Weight	1.5
Shipping Length	4
Shipping Height	2
Shipping Width	4
Freight Class	50
Package Type	Barrel
Units Per Package	1

Ordering Information

To place an order, please contact our knowledgeable and professional customer service team:

PHONE: 800-543-1677
EMAIL: [email protected]

If you are unable to find what you need, or you require a custom part, simply call and speak with one of our knowledgeable hardware specialists. They can walk you through the ordering process quickly and professionally.
