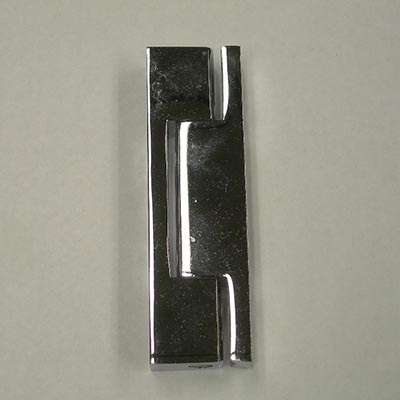

Diecast French Hinge

Item# 9-00048-R Category:

Brand: Weston Body Hardware


Dimension A (Length) 4 Inch
Countersunk 11/32 Inch
Dimension B (Height to Pin) 18/32 Inch
Dimension C (Section Width) 9/16 Inch
Dimension D (Location) 1 3/8 Inch
Dimension E (Location) 1 1/4 Inch
Dimension F (Location) 5/8 Inch
Dimension G (Location) 2 1/2 Inch
Dimension H (Location) 11/64 Inch
Dimension J (Height to Section) 11/32 Inch
Dimension K (Hinge Pin Diameter) 1/4 Inch
Shipping Weight .4
Shipping Length 4.00
Shipping Height 0.57
Shipping Width 0.75
Freight Class 50
Package Type Barrel
Units Per Package 1

Ordering Information

To place an order, please contact our knowledgeable and professional customer service team:

If you are unable to find what you need, or you require a custom part, simply call and speak with one of our knowledgeable hardware specialists. They can walk you through the ordering process quickly and professionally.
